Ice Maker Outlet Box: Applications and Practical Use

The Ice Maker Outlet Box is designed to provide a dedicated water connection for ice-making appliances in both residential and commercial kitchens. Its primary function is to house the water supply line securely, preventing accidental leaks and creating a clean, organized installation point.

These outlet boxes are commonly installed behind refrigerators or near countertop ice makers. In commercial kitchens, they are often used in ice stations or beverage areas where multiple ice-making units are present. By using an Ice Maker Outlet Box, installers can ensure the water line is protected from accidental damage and the surrounding wall area remains free from water exposure.

When selecting an outlet box, it is important to consider its material and durability. Plastic models provide cost-effective installation, while metal or brass versions offer enhanced long-term resistance to wear, corrosion, and temperature variations. An appropriately sized outlet box helps maintain consistent water flow, which is critical for ice quality and production speed.

Ice Maker Supply Box: Ensuring Consistent Water Delivery

The Ice Maker Supply Box focuses on providing a stable water flow to the ice maker. Unlike a standard water connection, a supply box typically includes built-in shut-off valves and secure fittings, which simplify maintenance and reduce the risk of leaks.

Proper installation of an Ice Maker Supply Box involves connecting it to the main water line while ensuring the pressure and tubing size are compatible with the ice maker unit. Water pressure that is too high or too low can affect ice formation and machine operation. For areas with hard water, it is recommended to install a filter before the supply box to reduce mineral buildup that could impact the ice maker.

A supply box should be easily accessible for inspection and maintenance. Some models include additional ports for connecting filtration systems or ice machine accessories, which can enhance convenience for both residential users and commercial operators.

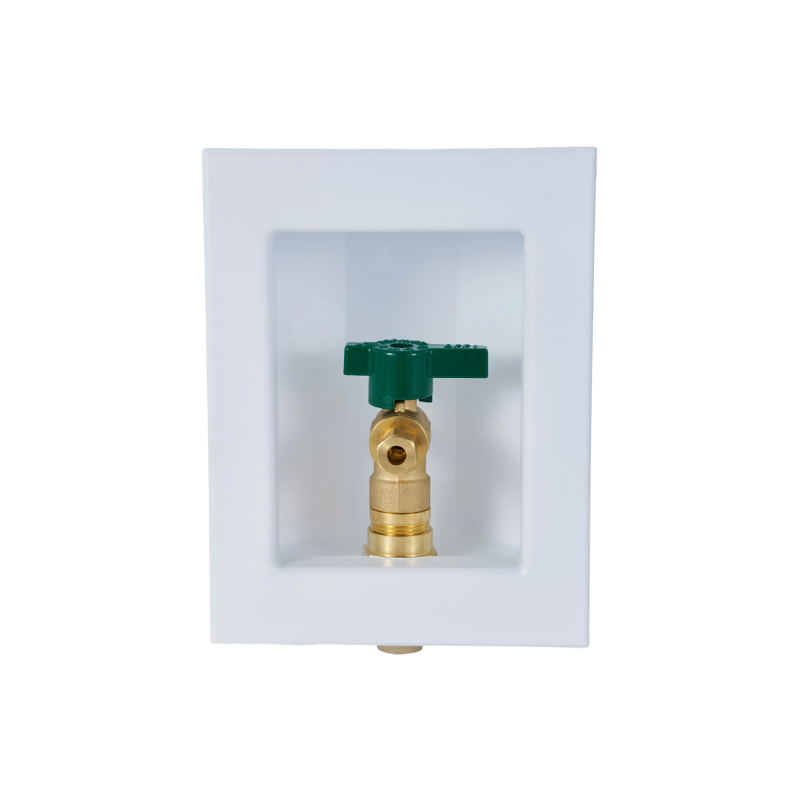

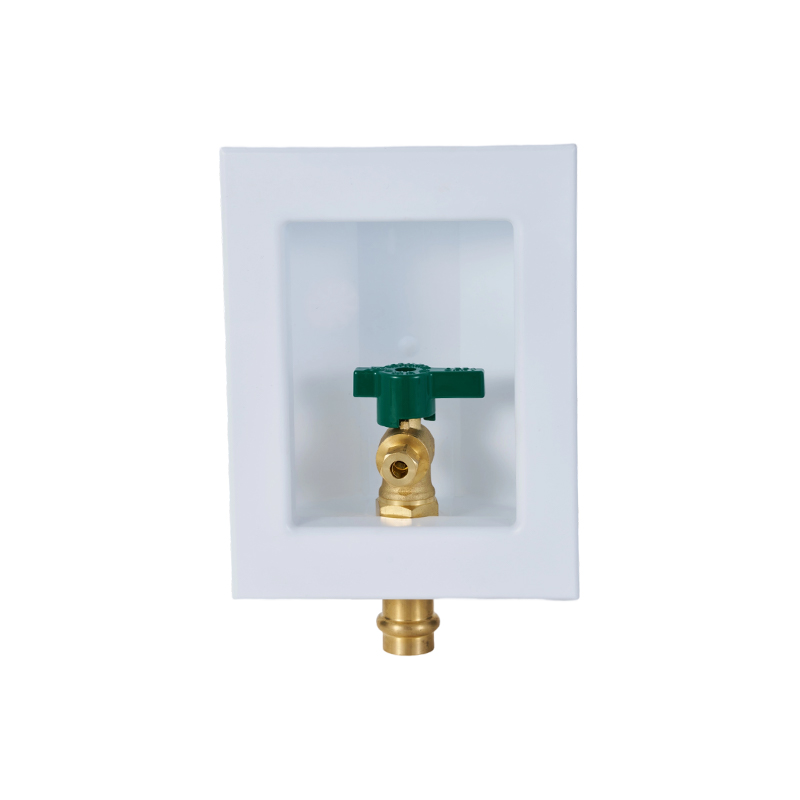

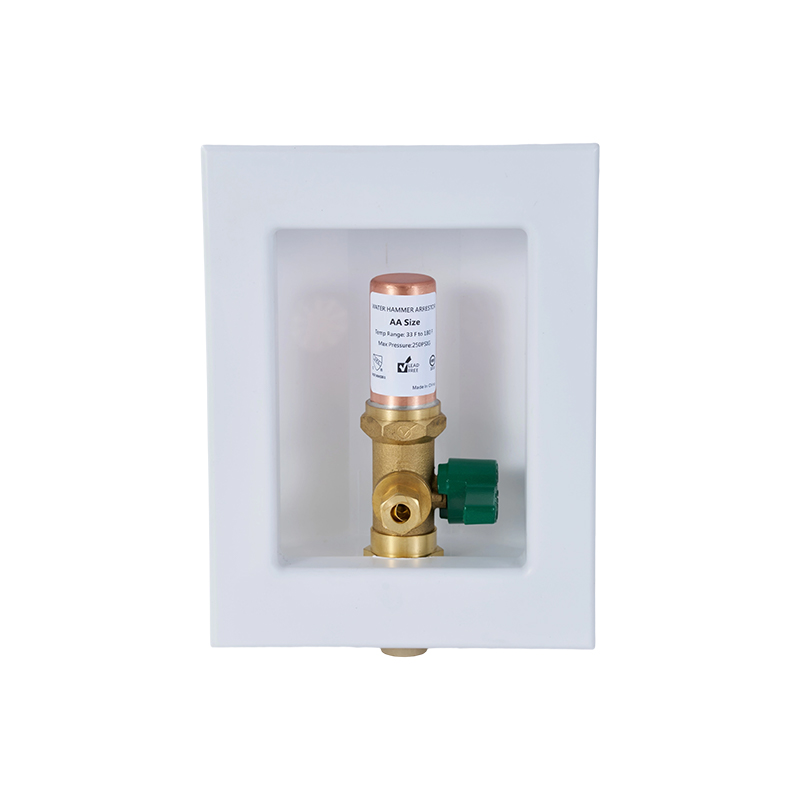

Ice Maker Valve Outlet Box: Integrating Safety and Control

The Ice Maker Valve Outlet Box combines the functions of a standard outlet box with an integrated shut-off valve. This design allows users to quickly stop water supply to the ice maker without affecting other appliances or plumbing lines. It is particularly useful in commercial environments where multiple ice makers or water lines are in use.

Materials used for valve outlet boxes often comply with certifications such as NSF/ANSI 61 and CUPC, ensuring safety for potable water and resistance to corrosion. Installation involves connecting the main water line to the valve input and running a supply line to the ice maker. The integrated valve reduces the need for additional fittings, less potential leak points and simplifying maintenance tasks.

A Valve Outlet Box also provides operational convenience during seasonal shutdowns or cleaning cycles. By turning off the valve, users can safely service the ice maker without draining the entire water system.

Common Installation Tips for Ice Maker Boxes

When installing Ice Maker Outlet Box, Ice Maker Supply Box, or Ice Maker Valve Outlet Box, several factors should be considered:

1. Wall Placement: Ensure the box is mounted at the correct height and in alignment with the ice maker inlet.
2. Tubing Compatibility: Confirm that the box fittings match the type of tubing (PEX, CPVC, or copper) used for the water line.
3. Secure Mounting: Boxes should be attached to a wall stud or solid support to prevent movement that could stress connections.
4. Access for Maintenance: Leave enough space around the box for valve operation, inspection, and possible future replacement.
5. Check for Leaks: After installation, test all connections before closing the wall or cabinetry to prevent water damage.

Following these steps can reduce common issues such as leaks, low water flow, or difficulty in servicing the ice maker.

Industry Standards and Certifications

Products such as Ice Maker Outlet Box, Ice Maker Supply Box, and Ice Maker Valve Outlet Box often meet industry standards like CUPC, NSF/ANSI 61, and NSF372. These certifications indicate that the materials used are safe for drinking water, resistant to corrosion, and compliant with plumbing regulations.

Certifications are particularly important in commercial or public environments where water safety and hygiene are critical. When choosing a product, checking for compliance ensures reliability and avoids potential health or regulatory issues.

Addressing Common Concerns

Consumers and installers often ask about differences between the three types of boxes. While the Outlet Box provides a fixed connection, the Supply Box focuses on consistent water delivery, and the Valve Outlet Box adds a shut-off control for convenience and safety. Choosing the right box depends on installation needs, space, and maintenance requirements.

Other common concerns include compatibility with pipe materials, water pressure, and accessibility for maintenance. Selecting a box that matches the ice maker model and installation environment helps prevent operational problems and ensures a long service life.

Understanding the roles of the Ice Maker Outlet Box, Ice Maker Supply Box, and Ice Maker Valve Outlet Box is key to achieving a reliable ice-making setup. Proper selection, installation, and maintenance improve water delivery, prevent leaks, and facilitate safe operation. These components are essential for both home kitchens and commercial ice-making applications, providing organization, control, and compliance with industry standards.
