Understanding the Washing Machine Outlet Box

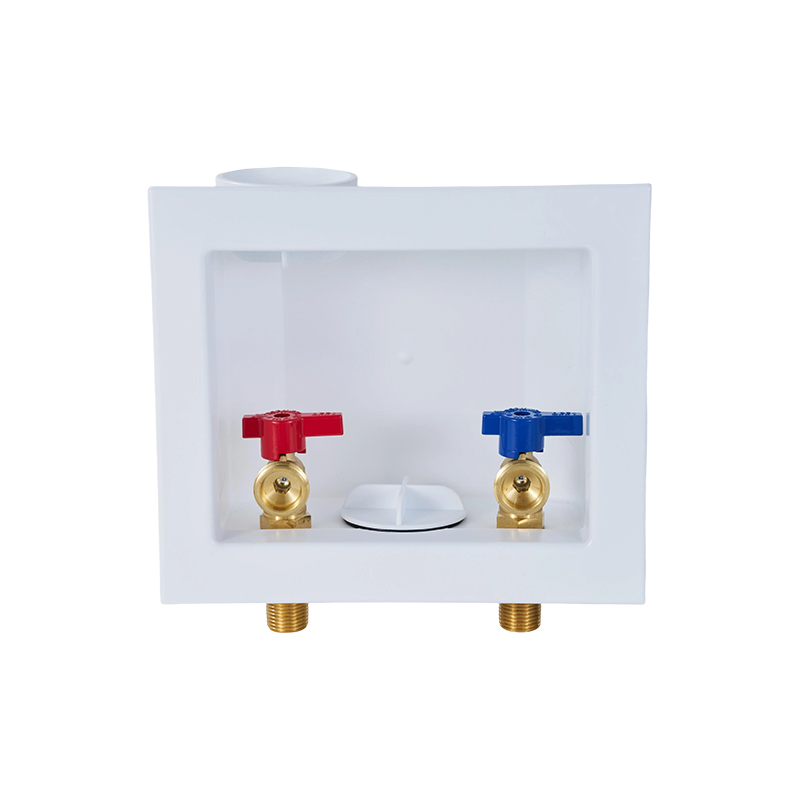

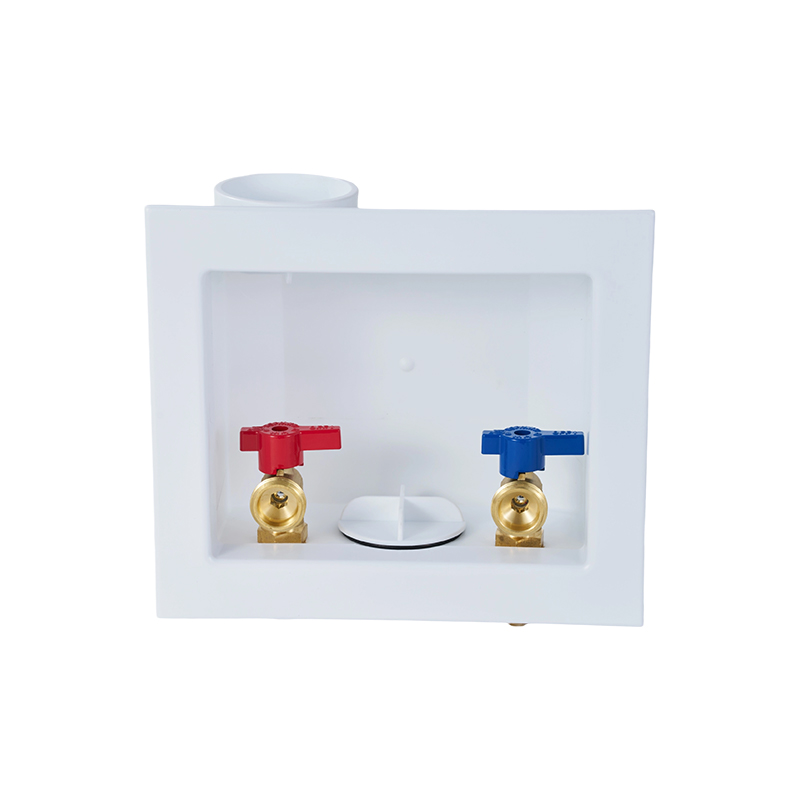

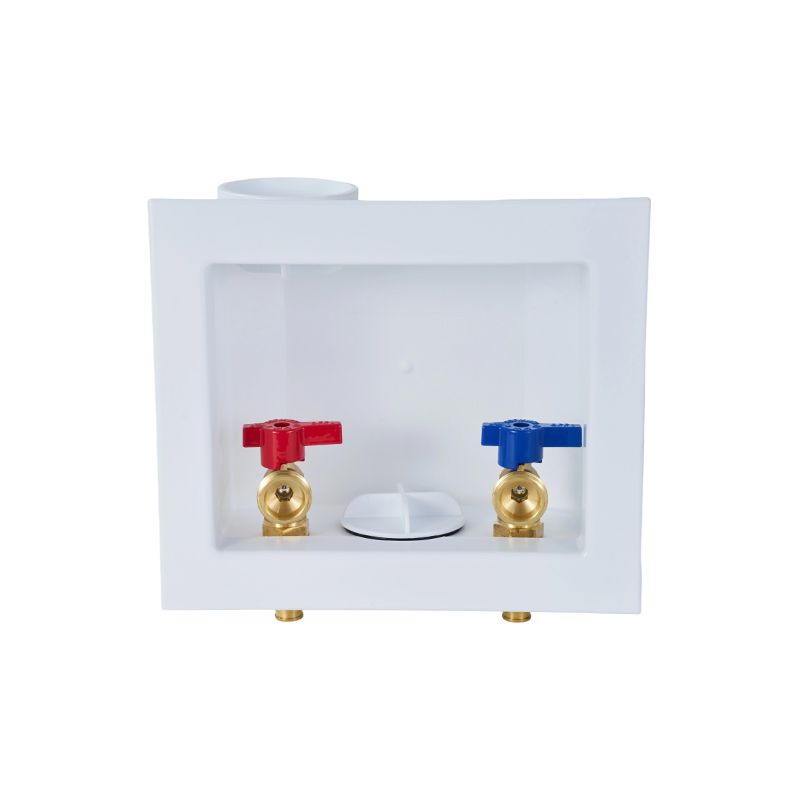

A Washing Machine Outlet Box is a recessed enclosure installed in the wall where a washing machine connects to its water supplies and drain system. Unlike having exposed pipes directly in the wall cavity, the outlet box centralizes the hot and cold water shutoff valves and the drain opening into one location. This setup provides a neat finish, easier maintenance access, and improved leak containment.

Core Function

The primary function of the Washing Machine Outlet Box is to provide accessible control of water supplies while organizing the water and drain connections. The box typically houses quarter‑turn shutoff valves that allow the user or a technician to easily turn off water flow without having to access pipes within the wall. Recessing valves inside a box also helps protect them from accidental bumps and freezing in cold climates.

Integrated Drain Management

Washing machine outlet boxes include a drain opening, usually sized for a standard 2‑inch pipe. This drain serves as the connection point for the washing machine’s drain hose. Well‑designed boxes also incorporate features such as raised drip guards or internal channels that direct any escaped water into the drain path, reducing the risk of water damage behind walls.

Installation Considerations

Installing a Washing Machine Outlet Box is typically done during the rough‑in phase of construction or renovation before drywall is completed. The box must be securely fastened to structural studs or support brackets, and its height should match both local plumbing codes and the washing machine manufacturer’s recommendations. Proper positioning ensures that the washer’s drain hose can reach the drain without straining.

What You Need to Know About a Washing Machine Supply Box

While closely related to an outlet box, a Washing Machine Supply Box specifically refers to the component that contains the water supply shutoff valves for hot and cold water. It overlaps with the outlet box concept but emphasizes the water supply side of the laundry plumbing connection.

Water Supply Valves

Supply boxes integrate shutoff valves that control hot and cold water flow to the washing machine. These valves are typically quarter‑turn ball valves that open or close water flow smoothly without extended handle rotation. The thread at the valve outlet is usually sized to match standard washer hose fittings.

Using a dedicated supply box instead of exposed pipes improves safety, less visual clutter, and simplifies maintenance. For example, if a washing machine hose starts leaking, the homeowner can instantly shut off water at the valves in the supply box without needing tools or accessing hidden pipes.

Versatility With Pipe Types

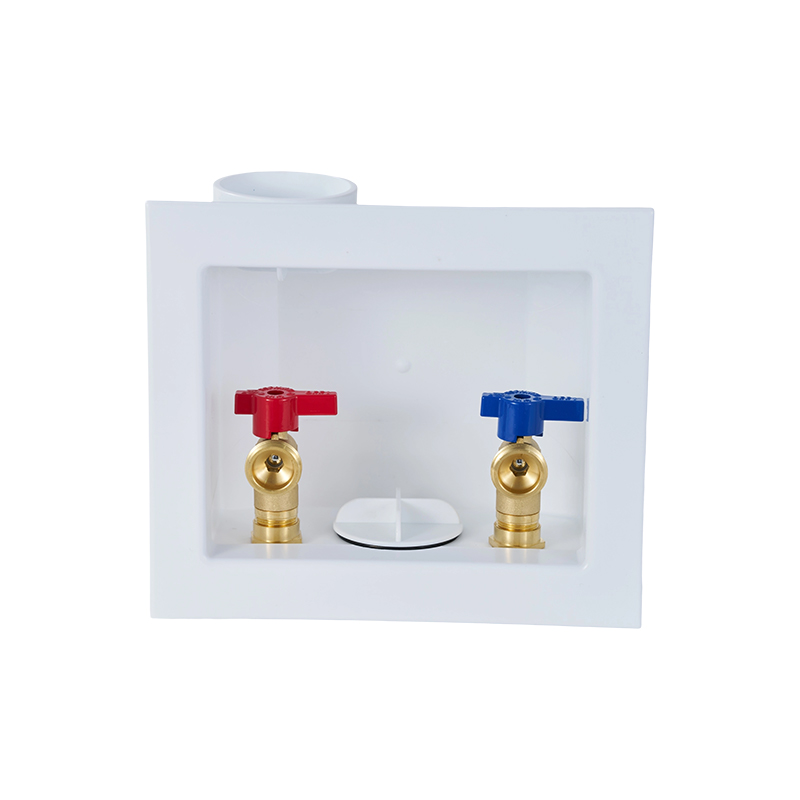

Modern Washing Machine Supply Boxes are compatible with different piping materials such as copper, PEX and CPVC. Some designs include engineered tailpieces or knockouts that can accept multiple connection standards, which helps accommodate different installation setups without complex adaptors.

Optional Features

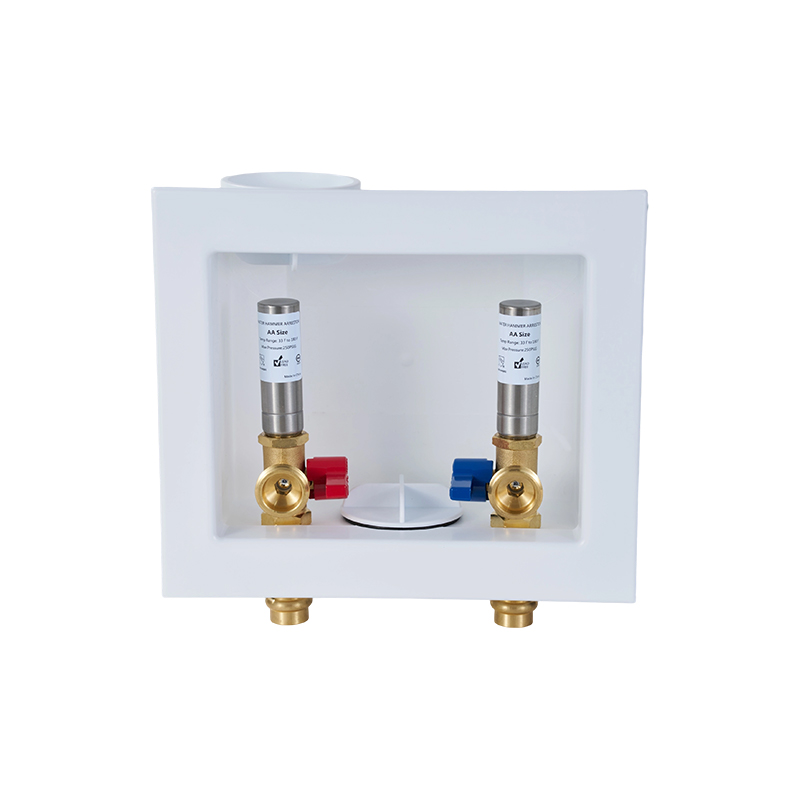

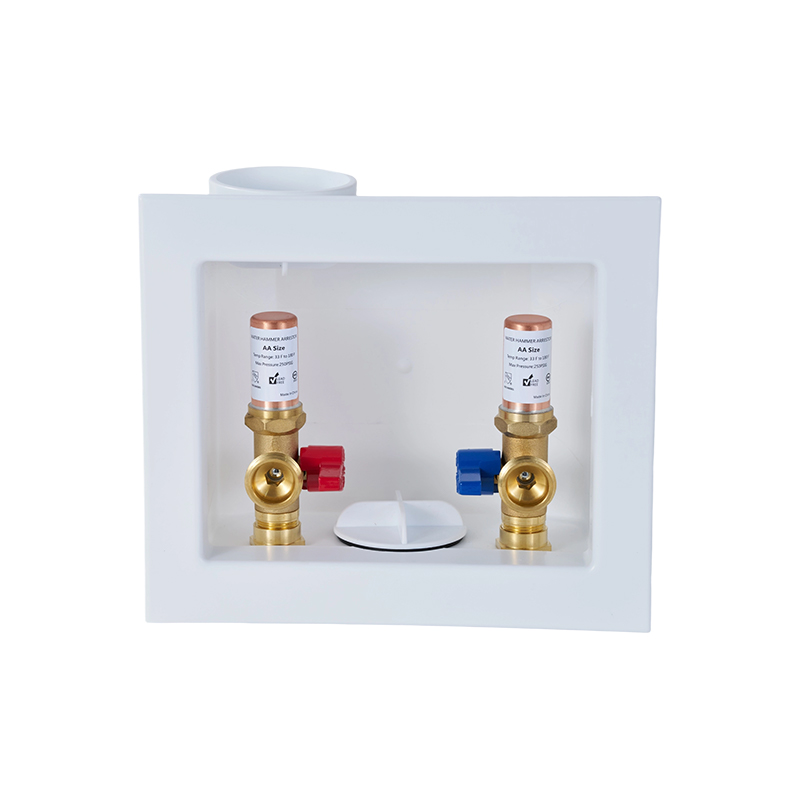

In many supply box configurations, integrated water hammer arrestors can be included. These devices absorb pressure surges when valves are shut quickly, reducing stress on pipes and preventing hammering noises that can damage plumbing over time.

Exploring the Washing Machine Hookup Box

A Washing Machine Hookup Box is another term often used interchangeably with washing machine outlet or supply boxes, emphasizing the entire connection interface where both water supply and drain are brought together for a washer installation.

Unified Connection Point

The main idea behind a hookup box is to provide a single, organized location for hooking up all washer service lines. This includes:

• Hot water supply
• Cold water supply
• Drain line
• Potential auxiliary lines (e.g., condensate or overflow handling)

By centralizing all connections in one box, the hookup process becomes more predictable and serviceable.

Importance in New Construction and Renovations

In new construction, a washing machine hookup box simplifies the layout of plumbing rough‑ins. It clearly delineates where the laundry equipment will connect, avoiding ad‑hoc piping later. During renovations, installing such a box can update older plumbing systems, adding centralized valves and a proper drain outlet that aligns with code and design standards.

Installation Planning

Proper installation of a Washing Machine Hookup Box should consider:

• Wall thickness and drywall depth, so the faceplate sits flush and accessible.
• Stud spacing and framing, to provide structural support.
• Height relative to the washer’s drain hose, ensuring the hose does not kink or pull away from the box.

Correct planning contributes to a clean installation and reduces callbacks for service adjustments.

Industry Standards and Compliance

Across plumbing markets, outlet and supply boxes must comply with recognized plumbing standards to ensure safety and performance. Commonly referenced standards include those governing materials, valve performance, and drainage connections. Certified products help ensure consistent quality and reliable operation over time.

Compliance with standards also facilitates inspections and approvals by local plumbing authorities, which may be required during new builds or major remodels.

Practical Tips for Users and Installers

• Positioning matters: Install boxes at the correct height and alignment early in the construction process.
• Drain orientation: Confirm whether a center, left, or right drain orientation fits the washer model and space layout.
• Service access: Ensure valves are easy to reach and operate when the washer is installed.

Understanding how these boxes work—and how to properly plan for and install them—improves installation quality, serviceability, and long‑term performance for residential and commercial laundry applications.
